DESCRIPTION

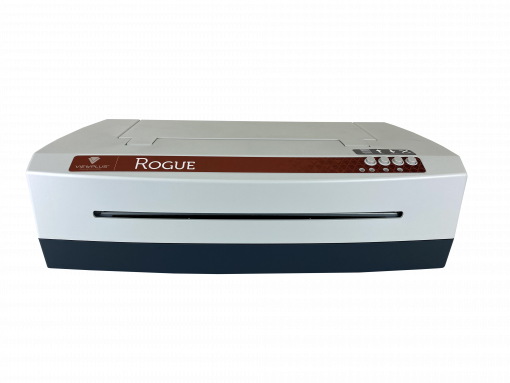

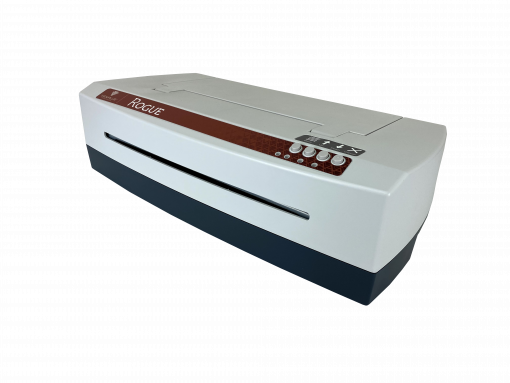

The VP Rogue is the only embosser approved for Smarter Balanced testing. Industry leading tactile graphics all in a convenient desktop embosser.

SPECIFICATIONS

Embossing

• Print speed: Up to 120 CPS
• Printing Mode: Single-sided
• Tactile Resolution: 20 or 100 DPI
• Tactile Graphic Dot Heights: 7 steps for color representation
• Braille Dot Heights: Adjustable in 3 heights
• Total of 8 Dot Heights: 7 for color and 1 for braille

---

Paper

• Paper Width: 7 – 12 inches (176 – 305 mm)
• Paper: Continuous (Rogue Trac), Cut Sheet (Rogue Sheet)
• Paper Weight: 33 – 120 lb (90 – 200 gsm)

---

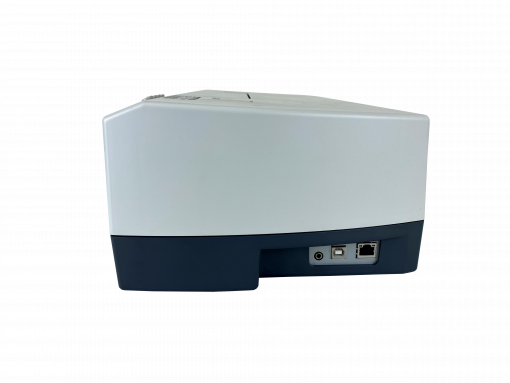

Connection/Compatibility

• Connection: USB (1.1, 2.0)
• Compatibility: Windows 7, 8/8.1, 10

---

Dimensions/Weight

• Height: 6.2 in (158 mm)
• Width: 21.9 in (557 mm)
• Depth: 10.8 in (275 mm)
• Weight: 19.8 lbs (9 kg)

---

Temperature/Humidity

• Recommended Temperature: 59 – 95 °F (15 – 35 °C)
• Storage Temperature: -4 – 158 °F (-20 – 70 °C)
• Humidity: 20 – 80% RH (non-condensing)

---

Power Supply

• 85 – 264 VAC
• 50/60 Hz (+/- 3%)
• Standby: 20 W
• Heavy Embossing: 200 W

---
