Description

Features

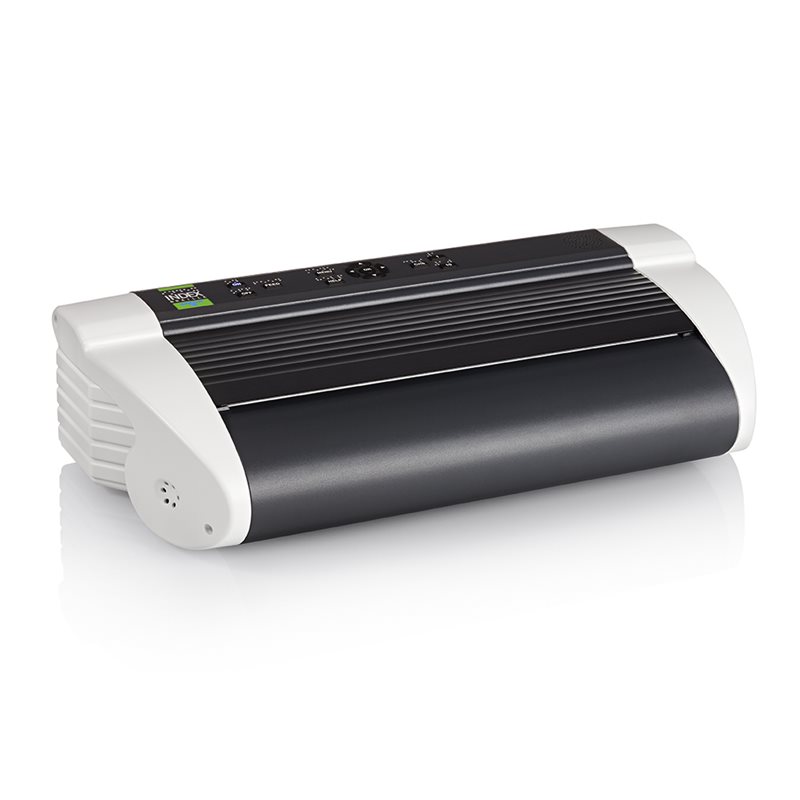

The Basic-D V5 braille printer-embosser is manufactured by INDEX Braille. Best-selling for years, the Basic-D embosser uses towed paper to produce quality single-sided or double-sided braille.

• Compact size.
• 140 characters per second.
• Printing from portable devices.
• Control panel in black and Braille.
• Self-Feed Tractor: Most reliable paper feeding method.

25 years of experience

True to the old model, the Basic-D still features a compact design, powerful features and self-powered tractor paper feeding; but now it is available with the latest Hi-Tech possibilities: Wi-Fi connection, embossing from USB, Braille printing from mobile devices…

As always, Basic-D is:

• Easy to use ;
• Built to last;
• Includes modern braille printing functions;
• Offers many service options;
• Produces high-quality braille.

An even more powerful Basic-D

Externally, nothing has changed. But Basic-D V5 has been updated to include all the latest braille techniques and compatibility with consumer technologies.

• Faster ;
• Wi-Fi ;
• LED lighting ;
• Cleaner design;
• USB connection;
• V5 control panel;
• Vocal feedback with Acapela voice;
• Firmware 2.0 and higher.

Regional settings

The Basic-D V5 is delivered pre-configured according to the country of purchase, according to 9 pre-defined settings. These settings include:

• The voice feedback language;
• The paper size;
• The type of printing (recto_verso);
• The braille translation table (for idB);
• Layout.

Vertical and horizontal braille printing

As with any printer, the standard print format is to print horizontally on the page to create a portrait format. However, thanks to INDEX’s “Floating Dot Page” concept, it is possible to print Braille dots anywhere on the page, while retaining the possibility of double-sided printing.

This method offers flexibility that no other printer can offer today.

Lighting to refine the design

Light is an important element of the V5 design of INDEX printers, and the hallmark of its level of technology. The lighting is both a guide for the user of the interface and a design element.

4 year warranty

Technical characteristics

Braille

• Embossing speed: 140 characters per second
• Single-sided: YES
• Duplex: YES
• Vertical printing (booklet): YES
• Adjustable line spacing: YES
• Braille font size: 2.2, 2.5, 3.2 mm
• Touch resolution: 20 DPI
• Embossing method: 13 solenoids (hammers) against steel anvil
• Additional information: Interpoint (standard braille) and line spacing (2.2 mm font) available.

Communication

• USB: YES
• USB key: YES
• Wi-Fi network: YES
• Wired network: YES
• Bluetooth: YES
• Mobile device compatibility: YES
• Windows printer drivers: YES
• MAC printer drivers: YES
• Linux printer drivers: YES
• Web interface: YES
• Free factory software update: YES
• idB compatibility: YES

Power supply

• Voltage: 100-240VAC
• Max power: 140W
• Standby power consumption: 5W
• Economy mode: 0.05W
• Switched power supply: YES

General

• Warranty: 4 years
• Manufacturer: INDEX Braille / Sweden

Dimensions

• Height: 13cm
• Width: 52cm
• Depth: 26cm
• Weight: 7.6kg
• Volume: 17.58 dm3
• Noise level: 80dB(A)
• Noise level under acoustic hood: 63 dB(A)

Paper

• Tractor power supply: YES
• Paper weight: 120-180 gsm
• Paper width: 100-230 mm
• Paper length: 25-431mm
• Adjustable paper size: YES

---

  Download User Manual: User-manual-V5-english

---
