Description

DESCRIPTION

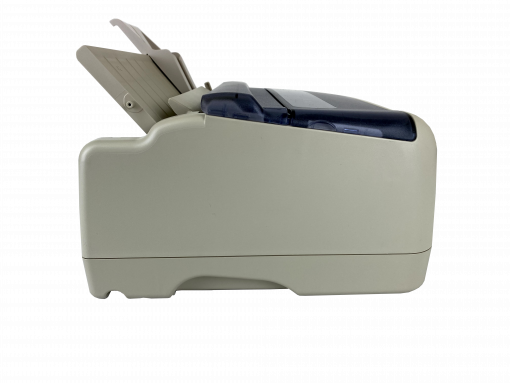

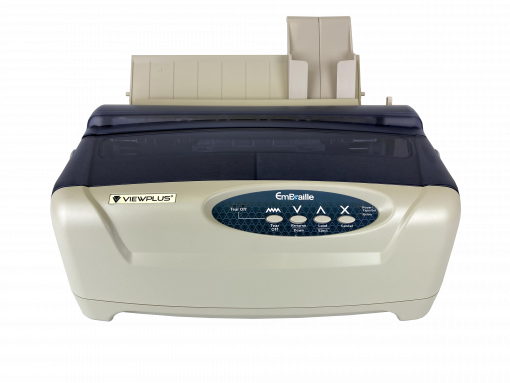

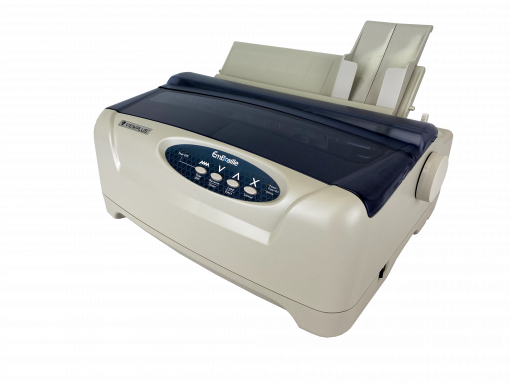

The VP EmBraille is the most affordable embosser in the world. Compact and highly portable with easy to use tractor fed paper, the VP EmBraille is the perfect choice for the classroom, busy professional, or at home.

SPECIFICATIONS

Embossing

• Print Speed: Up to 25 CPS
• Printing Mode: Single-sided
• Tactile Resolution: 17 DPI
• Tactile Graphic Dot Heights: Variable for color representation
• Braille Dot Heights: Adjustable in 3 heights

---

Paper

• Paper Width: 3 – 8.5 inches (77 – 216 mm)
• Paper: Continuous, single-sheet feeder
• Paper Weight: 30 – 108 lb (50-175 gsm)

---

Connection/Compatibility

• Connection: USB (1.1, 2.0)
• Compatibility: Windows 7, 8/8.1, 10

---

Dimensions/Weight

• Height: 6.25 in (159 mm)
• Width: 14.13 in (359 mm)
• Depth: 11.2 in (285 mm)
• Weight: 11 lbs (5 kg)

---

Temperature/Humidity

• Recommended Temperature: 41 – 95 °F (5 – 35 °C)
• Humidity: 20 – 80% RH (non-condensing)

---

Power Supply

• 100 – 120V, 220 – 240V
• 50/60 Hz (+/- 3%)
• Standby: <4 W Stamping operation: <85 W

---

EmBraille Manual : VPEmBrailleUserManual_2020Aug
