Description

DESCRIPTION

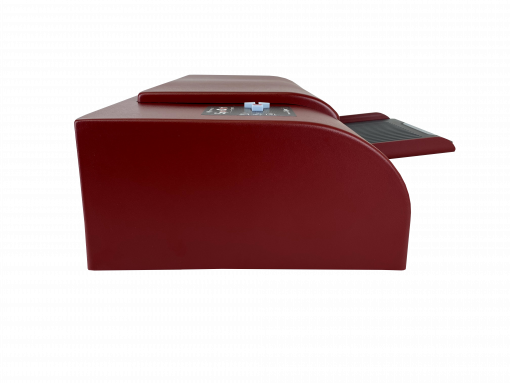

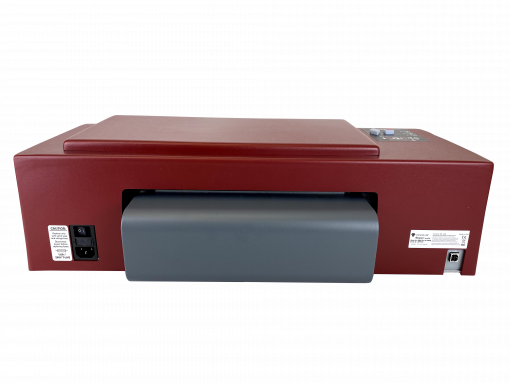

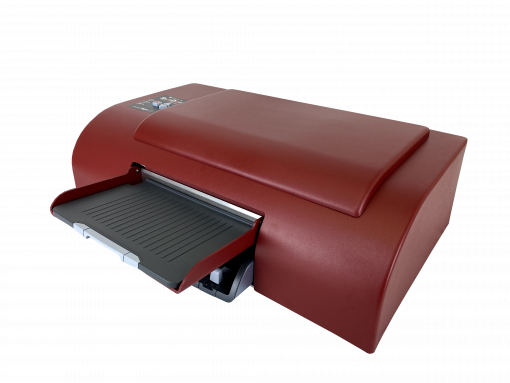

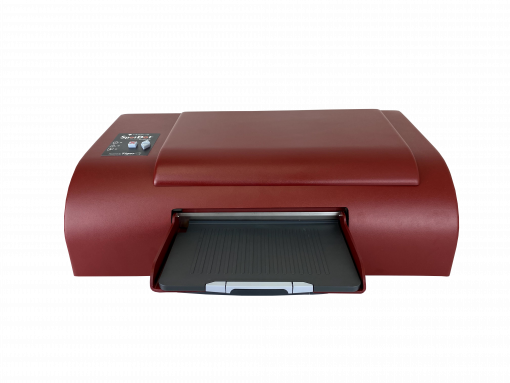

Color ink, tactile graphics, and cut sheet paper puts the VP SpotDot in a class of its own. No other embosser in the world provides as much versatility and flexibility in a desktop Braille printer.

---

SPECIFICATIONS

Embossing

• Print speed: Up to 50 CPS
• Printing Mode: Single-sided
• Tactile Resolution: 20 DPI
• Tactile Graphic Dot Heights: 7 steps for color representation
• Braille Dot Heights: Adjustable in 3 heights

---

Printing

• Color Print Resolution: 300 DPI
• Color Print Quality: Best, normal, draft
• Black Ink: Hewlett Packard Type 56 Black
• Color Ink: Hewlett Packard Type 57 Tri-Color
• Printing Width: Up to 8 in (203 mm)

---

Paper

• Paper Width: 4.33 – 8.5 inches (110 – 216 mm)
• Paper: Automatic sheet feed
• Paper Tray Capacity: 150 sheets copy, 60 sheets Braille paper
• Paper Weight: 30 – 140 lb (50 – 230 gsm)

---

Connection/Compatibility

• Connection: USB (1.1, 2.0)
• Compatibility: Windows 7, 8/8.1, 10

---

Dimensions/Weight

• Height: 7 in (178 mm)
• Width: 24 in (610 mm)
• Depth: 17 in (432 mm)
• Weight: 26.5 lbs (11 kg)

---

Temperature/Humidity

• Recommended Temperature: 59 – 95 °F (15 – 35 °C)
• Storage Temperature: -4 – 158 °F (-20 – 70 °C)
• Humidity: 20 – 80% RH (non-condensing)

---

Power Supply

• 100 – 240 VAR (+/- 10%)
• 50/60 Hz (+/- 3%)
• Standby: 12 W
• Average Ink Printing: 26 W
• Average Embossing: 64 W
• Heavy Embossing: 110 W<

---

USER MANUAL: VPSpotDotUserManual_2016Jun
