DESCRIPTION

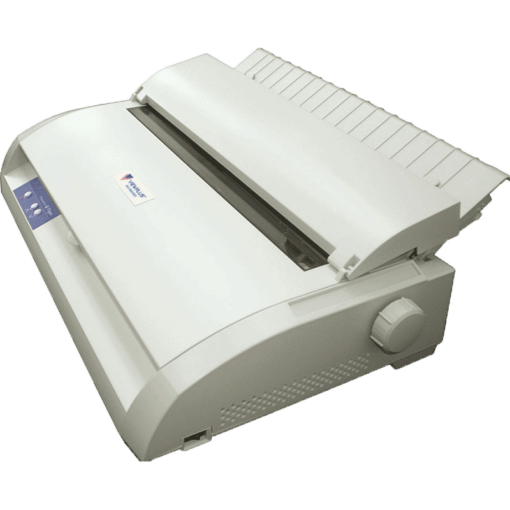

The VP Max is the only embosser approved for Smarter Balanced testing. Large format paper and industry leading tactile graphics all in a convenient desktop embosser.

---

SPECIFICATIONS

Embossing

• Print speed: Up to 60 CPS
• Printing Mode: Single-sided
• Tactile Resolution: 20 DPI
• Tactile Graphic Dot Heights: 7 steps for color representation
• Braille Dot Heights: Adjustable in 3 heights
• Total of 8 Dot Heights: 7 for color and 1 for braille

---

Paper

• Paper Width: 4 – 14 inches (101 – 355 mm)
• Paper: Continuous, single-sheet feeder
• Paper Weight: 30 – 140 lb (50 – 230 gsm)

---

Connection/Compatibility

• Connection: USB (1.1, 2.0)
• Compatibility: Windows 7, 8/8.1, 10

---

Dimensions/Weight

• Height: 5.75 in (146 mm)
• Width: 23.5 in (597 mm)
• Depth: 13.5 in (343 mm)
• Weight: 22 lbs (10 kg)

---

Temperature/Humidity

• Recommended Temperature: 41 – 95 °F (5 – 35 °C)
• Storage Temperature: -4 – 158 °F (-20 – 70 °C)
• Humidity: 20 – 80% RH (non-condensing)

---

Power Supply

• 100 – 120V, 220 – 240V
• 50/60 Hz (+/- 3%)
• Standby: 10 W
• Heavy Embossing: 85 W

---

USER MANUAL: VPCubJrCubMaxUSB_UM_EN_20160613
